Q4F-03600-321 120VAC 180-3600 Sec Timer

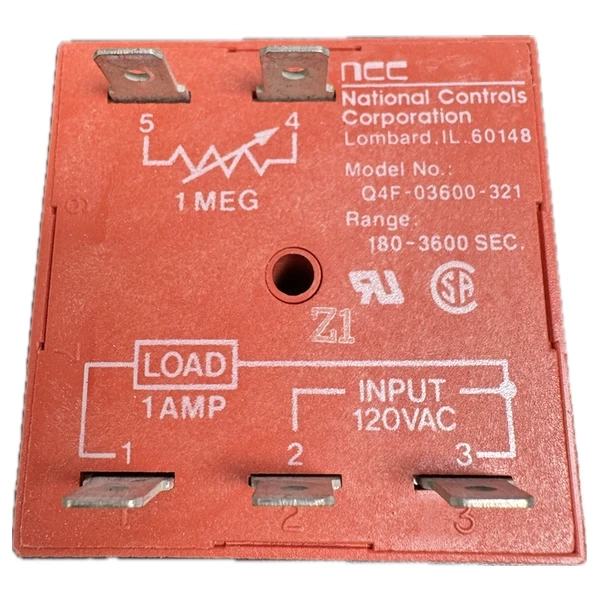

Q4F-03600-321 Solid State Timer

Upon application of input voltage the load energizes and the timing cycle starts. At the completion of the preset time delay, the load is de-energized. Reset is accomplished by removal of input volt-age.

• Timing Range: 180-3600 sec
• Input Voltage : 120 VAC
• Output Current: 1 Amp
• Interval
• Box 17
