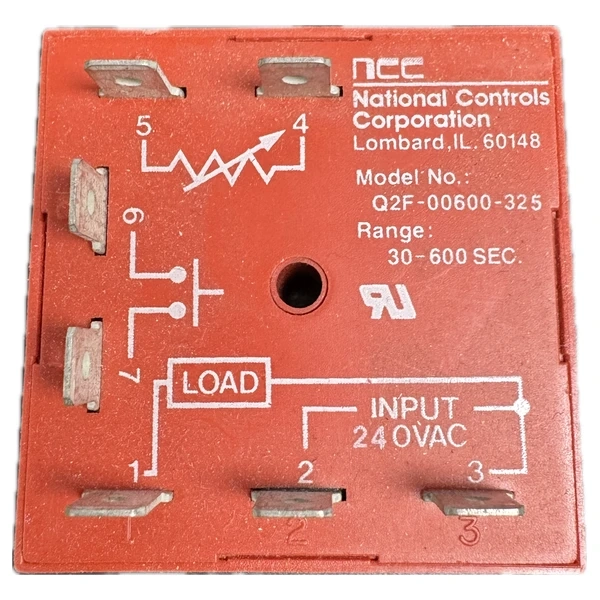

Q2F-00600-325 240VAC 30-600 Sec Timer

Q2F-00600-325 Solid State Timer

Operating Logic: Input voltage is applied to the timer at all times. Upon a momentary or maintained closure of a normally open iso-lated start switch, the load energizes and the time delay starts. At the end of the pre-set time delay, the load de-energizes and the timer is ready for a new timing cycle. (Start switch supplied by customer)

• Timing Range: 30-600 sec
• Input Voltage : 240 VAC
• Output Current: 1 Amp
• Single Shot
• Box 17
