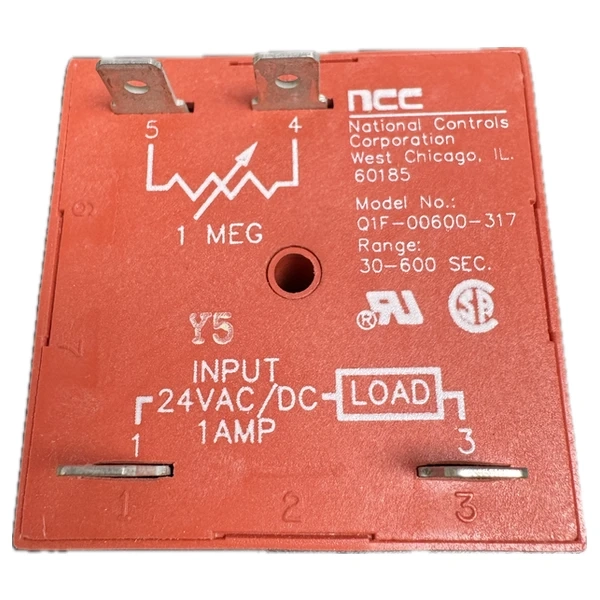

Q1F-00600-317 24VAC/DC 30-600 Sec Timer

Q1F-00600-317 Solid State Timer

Operating Logic: Upon application of Input voltage, the delay starts. At the end of the time delay, the load is energized, Reset is accomplished by removing input voltage.

• Timing Range: 30-600 sec
• Input Voltage : 24 VAC/VDC
• Output Current: 1 Amp
• Delay on Make
