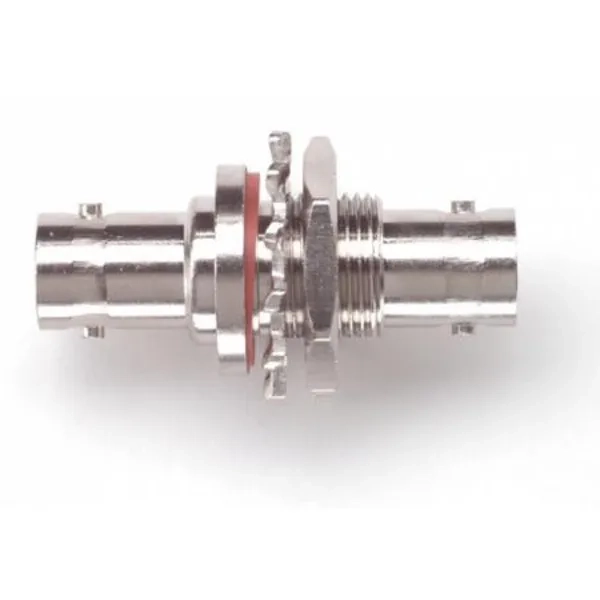

3847 BNC (F) To BNC (F) Coupler, Hermetic Bulkhead

3847 BNC (F) To BNC (F) Coupler, Hermetic Bulkhead

Features

• Hermetically sealed: Leakage rate less than 10-7 cc/sec of tracer gas at one atmosphere
• Materials
• Body and Fittings: Center Contact: Dielectric: PTFE
• Brass, Tarnish Resistant Nickel Plated
• Beryllium Copper, Gold Plated

Ratings

• Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/60 Vdc. Maximum voltage for hands free use in controlled testing environments: 500 Vrms.  Do not use on circuits where transient stresses can exceed the rated voltage.

• Temperature: -65ºC to +165ºC
• Nominal Impedance: 50 Ohm
